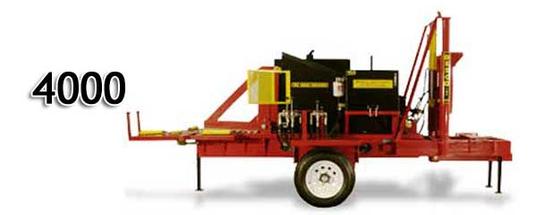

Model 4000 Tire Shear & DeRimmer Portable

• 27 HP gas motor with electric start or 26.5 diesel motor
• 3400 RPM
• Salami double pump
• Shear Capacity: semi truck, tractor & smaller tires
• Shear Cycle Time: 13-15 seconds
• Hydraulics 3000 PSI cylinder
• De-rimmer capacity: donut size to 17"
• De-rimmer cycle time: 14 seconds
• 40 gallon hydraulic tank
• 6000 LB tour flex axle
• Removable tongue
• Lift tire apron with easy spin rollers
• Two hand controls for safe operation
• Safety face guard
• Diesel motor has automatic shutdown system panel (optional)
• Two hand controls for safety
• Dual man operation (2 stations)
• Dimensions: 7'H x 16'L x 6'W

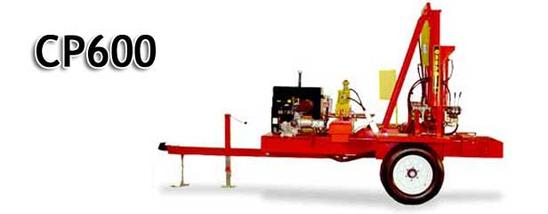

Model CP600 Tire Shear & DeRimmer Portable


• 22 HP gas motor with electric start

• 3400 RPM

• Salami double pump

• Shear Capacity: light truck & passenger tires

• Shear Cycle Time: 8-10 seconds

• De-rimmer Cycle Time: 11 seconds

• De-rims up to 16.5" rims

• Adjustable rim plate

• Hydraulics 3000 PSI cylinder

• 40 gallon hydraulic tank

• 6000 LB tour flex axle • Removable tongue

• Two hand controls for safe operation

• Safety face guard

• Two independent operating stations

• Dimensions: 7'6" H x 14' L x 6'4" W

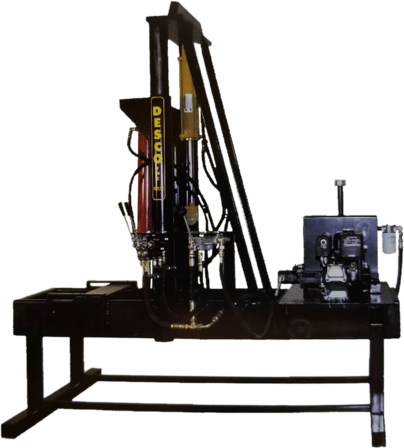

Model ST200 Tire DeRimmer Stationary

•  De-rims donut, passenger and light truck tires up to 20'' (no   semi tire rims)
• 6 HP Kohler gas engine with pull start or 5 HP fully enclosed electric motor
• 25-gallon hydraulic fluid tank - ISO 46 hydraulic fluid
• Barnes 2 stage pump - 3000psi
• 11 second de-rimming cycle time
• Weight 2130 lbs (approx.)
• Stationary unit
• Single man operation
• Two hand control system for safety
• Face Guard
DOES NOT SHEAR TIRES

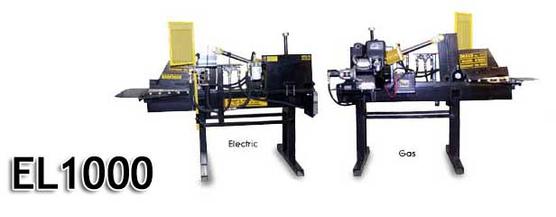

Model EL1000 (electric) Stationary

Model EL1000 (gas) Stationary

• 5 HP fully enclosed electric motor
• 3450 RPM
• Barnes 2 stage pump
• Shear Capacity: light truck and passenger tires
• Shear Cycle Time: 10-12 seconds
• Hydraulics 3000 PSI cylinder
• 20 gallon hydraulic tank
• Two-hand controls for safe operation
• Stationary floor mount
• Safety face guard
• Dimensions: 4'6" H x 6'8" L x 2'6" W
• Weight: 1321 LBS

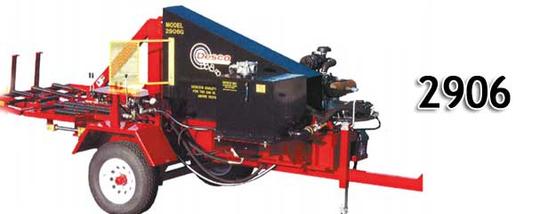

Model 2906 - Tire Shear Portable


• Cuts donut, passenger, light truck, off road, semi, and radial farm tractor tires
• Automatic hydraulic lift gate
• 30 HP Kohler gas engine with electric start
• 45 gallon hydraulic fluid tank - ISO 46 hydraulic fluid
• Cesna Load Sense Piston Pump 28 gal/min  aluminum   tandem - 3000psi
• Weight 4889 lbs (approx.)
• 13-15 second tire shear time
• Mobile unit - 2'' ball - heavy duty torsion bar axel
• Magnetic lights

• Single man operation
• Two hand control system for safety
• Face guard
DOES NOT DE RIM TIRES

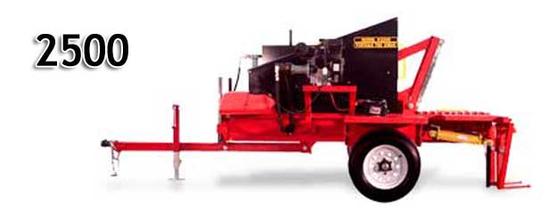

Model 2500 - Tire Shear Portable

• 18 HP gas motor with electric start
• 3400 RPM • Salami double pump
• Shear Capacity: light truck - passenger tires Off Road -Semi - Farm Tractor - Road Grader Tires
• Shear Cycle Time: 13-15 seconds
• De-rimmer Cycle Time: 11 seconds
• De-rims up to 16.5" rims
• Adjustable rim plate
• Hydraulics 3000 PSI cylinder
•
40 gallon hydraulic tank
• 6000 LB tour flex axle
• Removable tongue
• Two hand controls for safe operation
• Safety face guard
• One man operation
​​

• Dimensions: 7'6" H x 14' L x 6'4" W

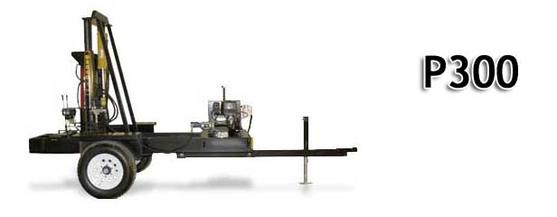

Model P300 Tire DeRimmer Portable


• 12 HP gas motor with electric start motor

• 3400 RPM

• Barnes 2 stage pump

• De-rims up to 16.5" rims

• De-rimmer cycle time: 11 seconds

• Hydraulics 3000 PSI cylinder

• 20 gallon hydraulic tank

• 3500 LB tour flex axle

• Two hand controls for safe operation

• Removable tongue

• Dimensions: 7'6" H x 14' L x 6'4" W
